Custom Apps

Use Custom Apps to run other tools inside a Project

Custom Apps are used to run additional tools that are not provided by default (e.g. Jupyterlab, Jupyter, and RStudio). Examples of Custom Apps could be a different browser based editor or a dashboard.

A Custom App is defined by a name, description, the port on which the app runs, and an optional shell command that is executed inside the running Project container when the App is started.

When an App is added to a Project, a button is added to the launcher. When you click this button the command (if provided) is run inside the Project container and a new tab is opened to the App.

Adding a Custom App

To add a Custom App to a Project, navigate to the "Environment" tab. Add any required packages or dependencies to run your App. This could be as simple as a pip package or is complex as Custom Docker instructions and some code that you write.

Then, add the Custom App by providing:

  • A short name that is 1 to 10 characters long
  • A short description of the App
  • A port number. This is the port on which the App is expected to run. The port provided is automatically added to the Project's container via an EXPOSE instruction in its Dockerfile.
  • An optional shell command. If provided, when the App is clicked in the launch menu this command is executed inside the running container.

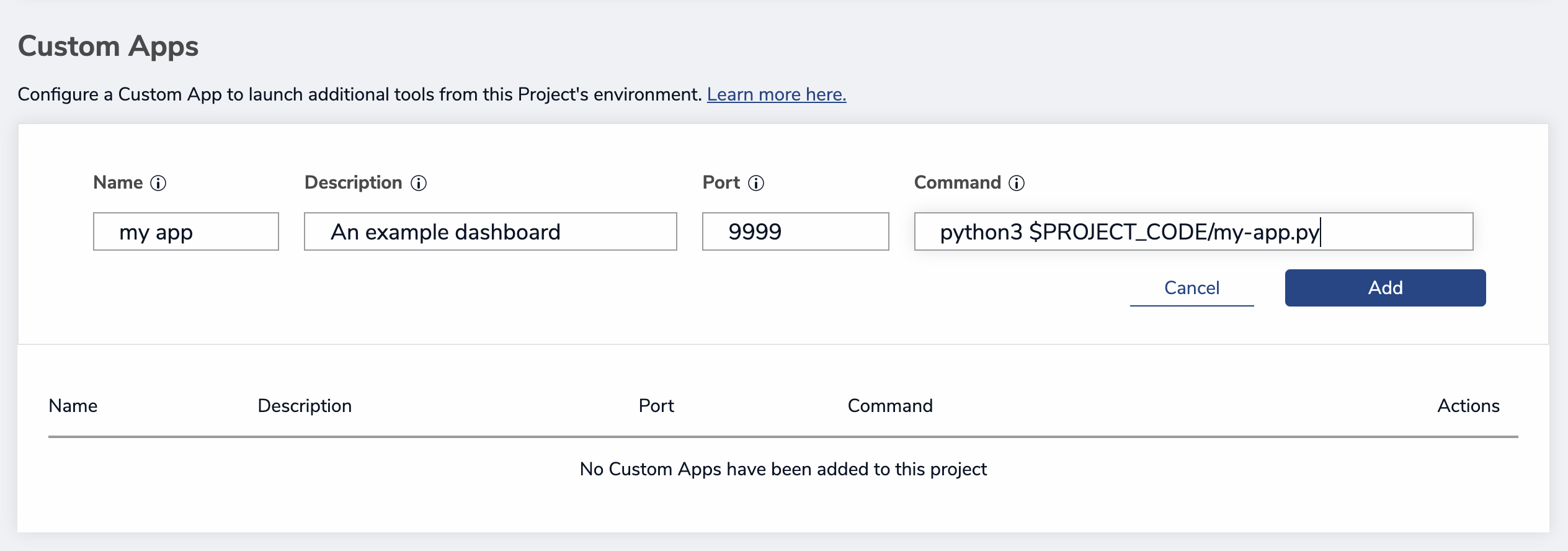

Adding a new App via the Custom App widgetAdding a new App via the Custom App widget

Adding a new App via the Custom App widget

📘

All Apps run on a prefix

All Apps are run through the Client's central proxy and are automatically assigned and routed via a prefix at runtime. Depending on your App you may need to provide this prefix using the environment variable $APP_PREFIX

There are several important and useful environment variables that are available when running your App and specifying the command:

  • $APP_PREFIX - The prefix at which the App will be hosted. Typically this is of the format /<app name>/<short uuid>. For Apps that have an interactive interface, you typically need to provide this prefix to your application for links to work.
  • $PROJECT_CODE - The path to the code directory in the Project
  • $PROJECT_INPUT - The path to the input directory in the Project
  • $PROJECT_OUTPUT - The path to the output directory in the Project

Using a Custom App

To use a Custom App that has been added to a Project, simply click the dropdown on the Launch button to show all available Apps. Then click on the desired App. If the container is not running it will start and then the App will be started.

The launch menu showing the Custom App is available to startThe launch menu showing the Custom App is available to start

The launch menu showing the Custom App is available to start

Modifying a Custom App

To modify an existing Custom App, click on the small edit button (the pencil icon) in the Custom App list. After making edits, click the :heavy-check-mark: to save your changes or the :x: to cancel.

Editing an example appEditing an example app

Editing an example app

Removing a Custom App

To remove a Custom App, simply click on the trashcan icon in the Custom App list.
